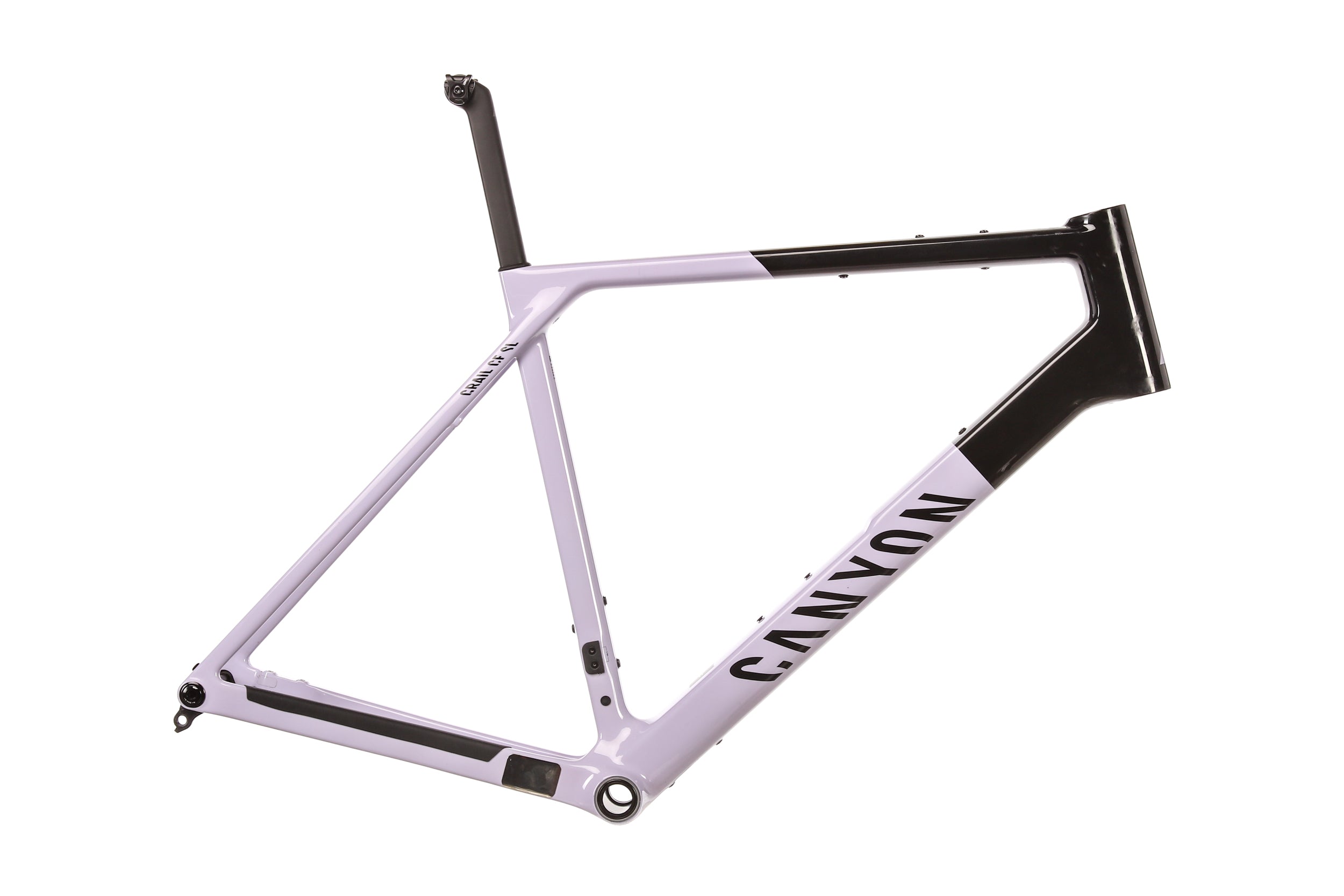

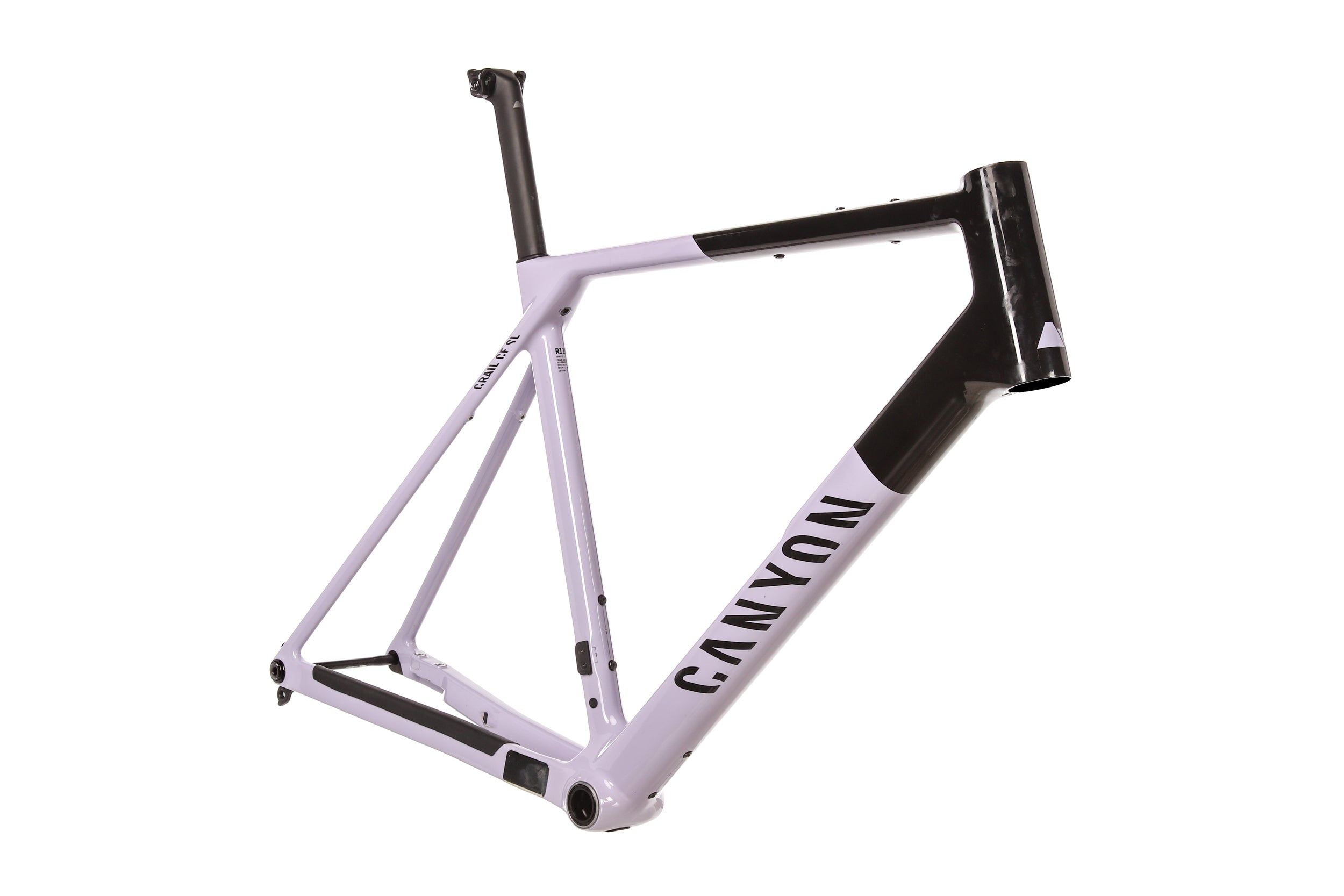

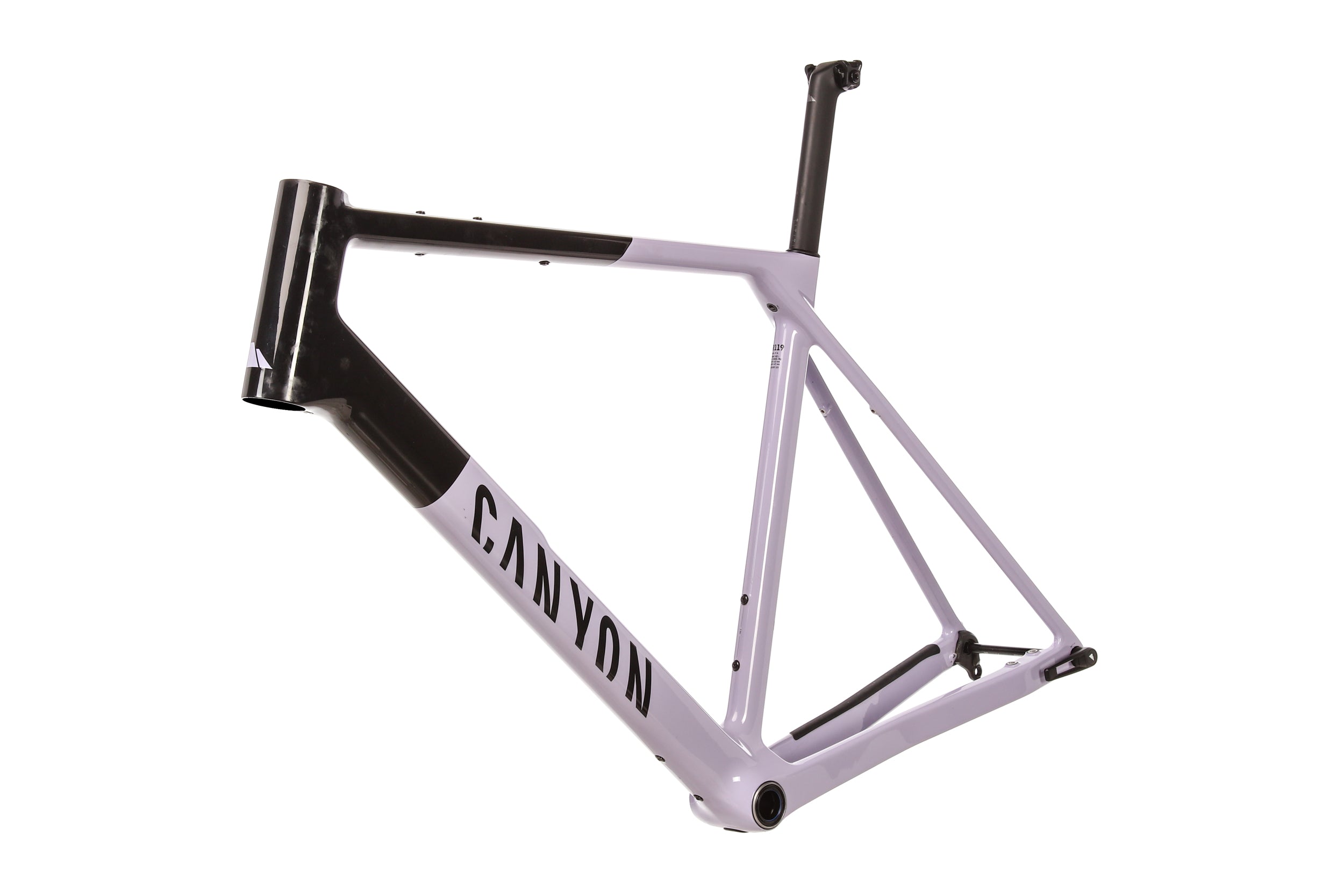

Canyon Grail CF SL Large Frameset - 2025
Item #FGR10793
Condition:
Pre-Owned
Fit Range: 6'.83" - 6'3.98"
people are looking at this
Shipping
Canadian Customers
Please note that any duties, taxes, or surcharges as required by Canadian customs and provincial authorities will be the buyer's responsibility. Shipping to Canadian addresses may take longer than expected due to customs.
Returns
30-Day Returns
Every product we sell is covered by a hassle-free 30-day satisfaction guarantee. Restrictions may apply.
The Holy Grail of Gravel
Why We Love It
About This Item
- Gravel-racing geometry combines comfort with speed
- Integrated Double Decker handlebar/ stem combo absorbs the roughest hits
- Low internal seat clamp means seatposts flex more for increased comfort
- Compatible with up to 42mm tires for max off-road grip
Master Mechanic’s Notes

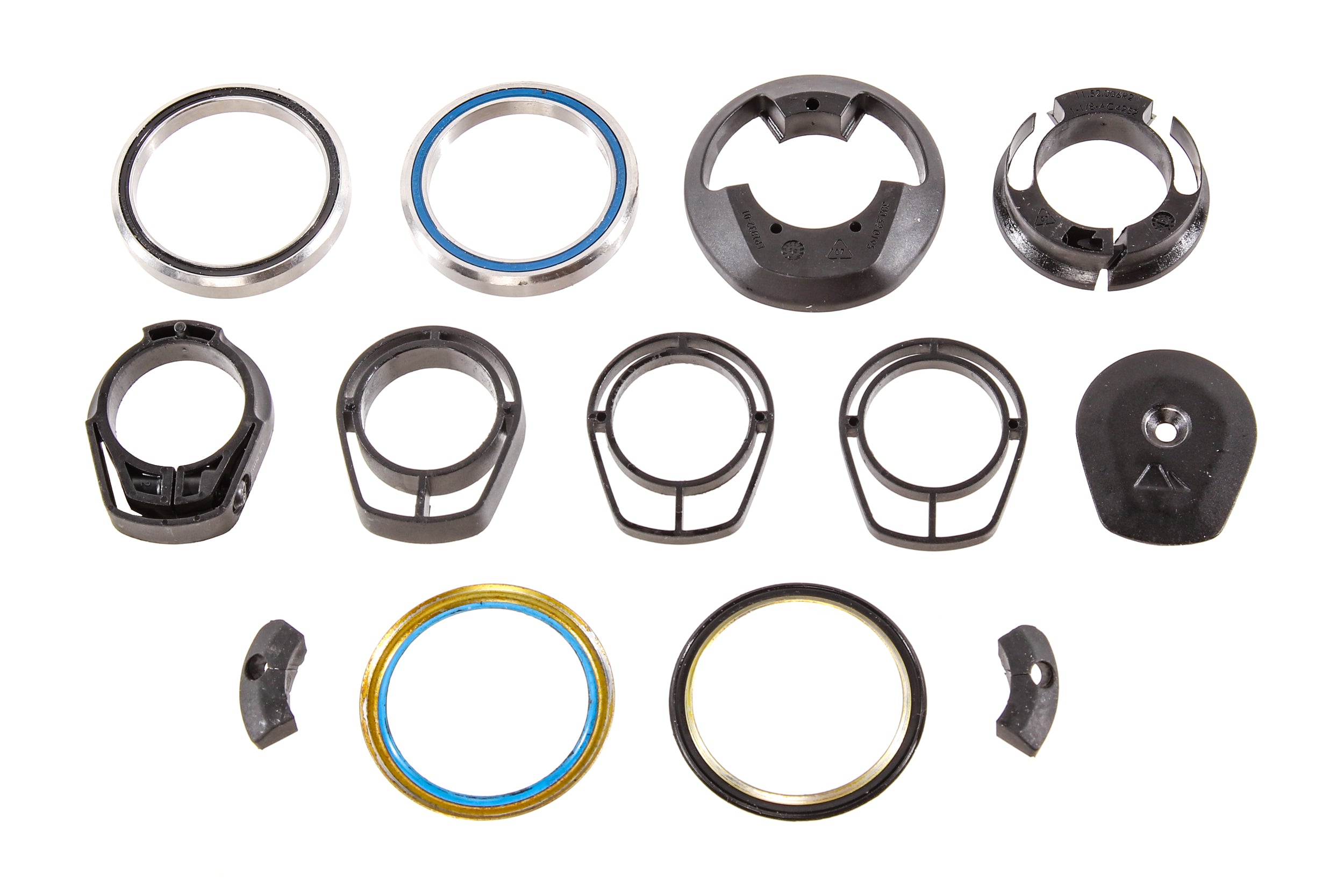

- Includes: headset, bottom bracket, seatpost w/ wedge, thru-axles, & rear derailleur hanger
- Excellent condition
- Light scratches/scuffs & Light wear from regular use (cable/tire rub, heel rub, chain, etc)

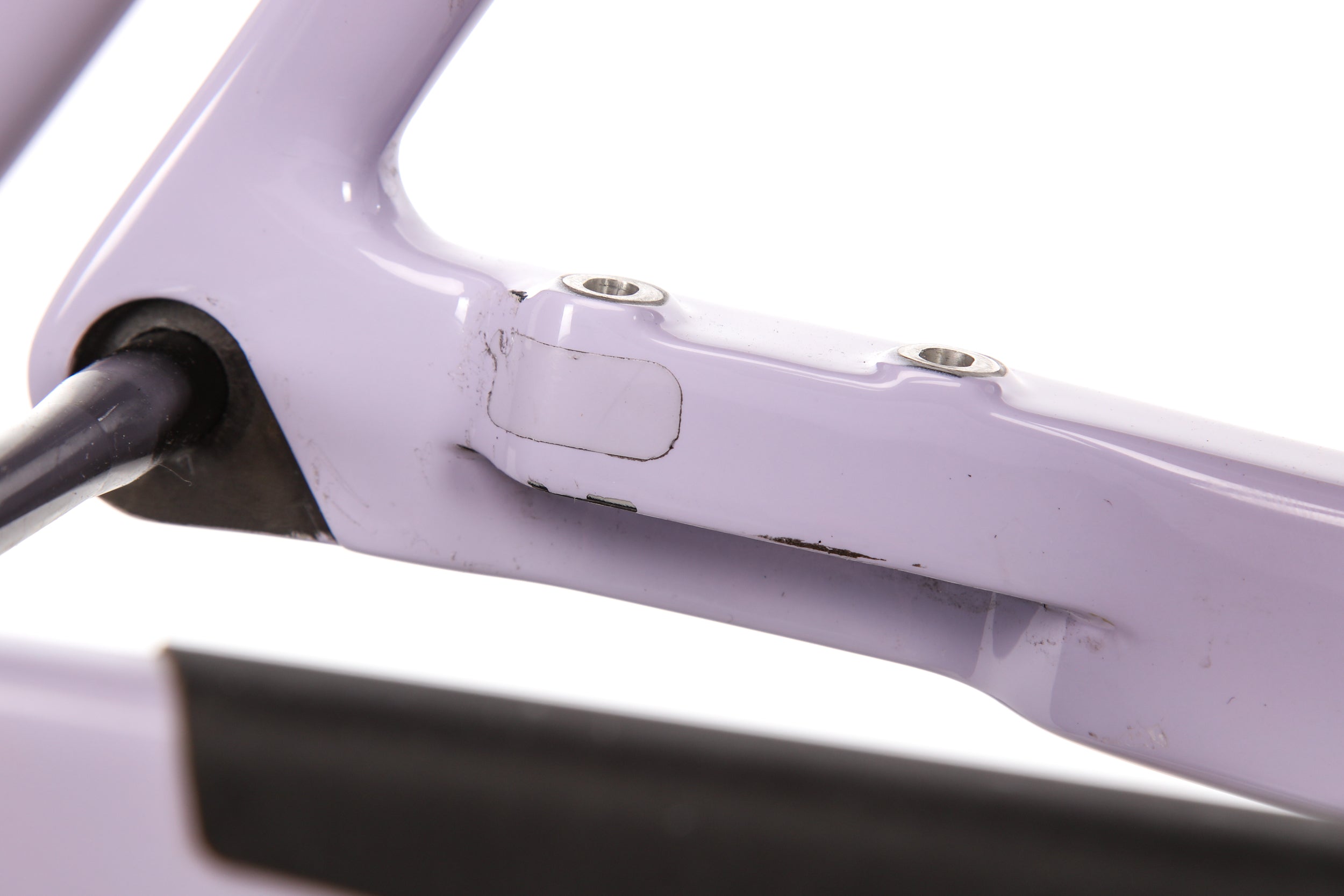

- Light scratches on the inside chainstays
Specifications
Details
| Year | 2025 |
| Brand | Canyon |
| Model | Grail CF SL |
| Size | Large |
| Frame Material | Carbon Fiber |

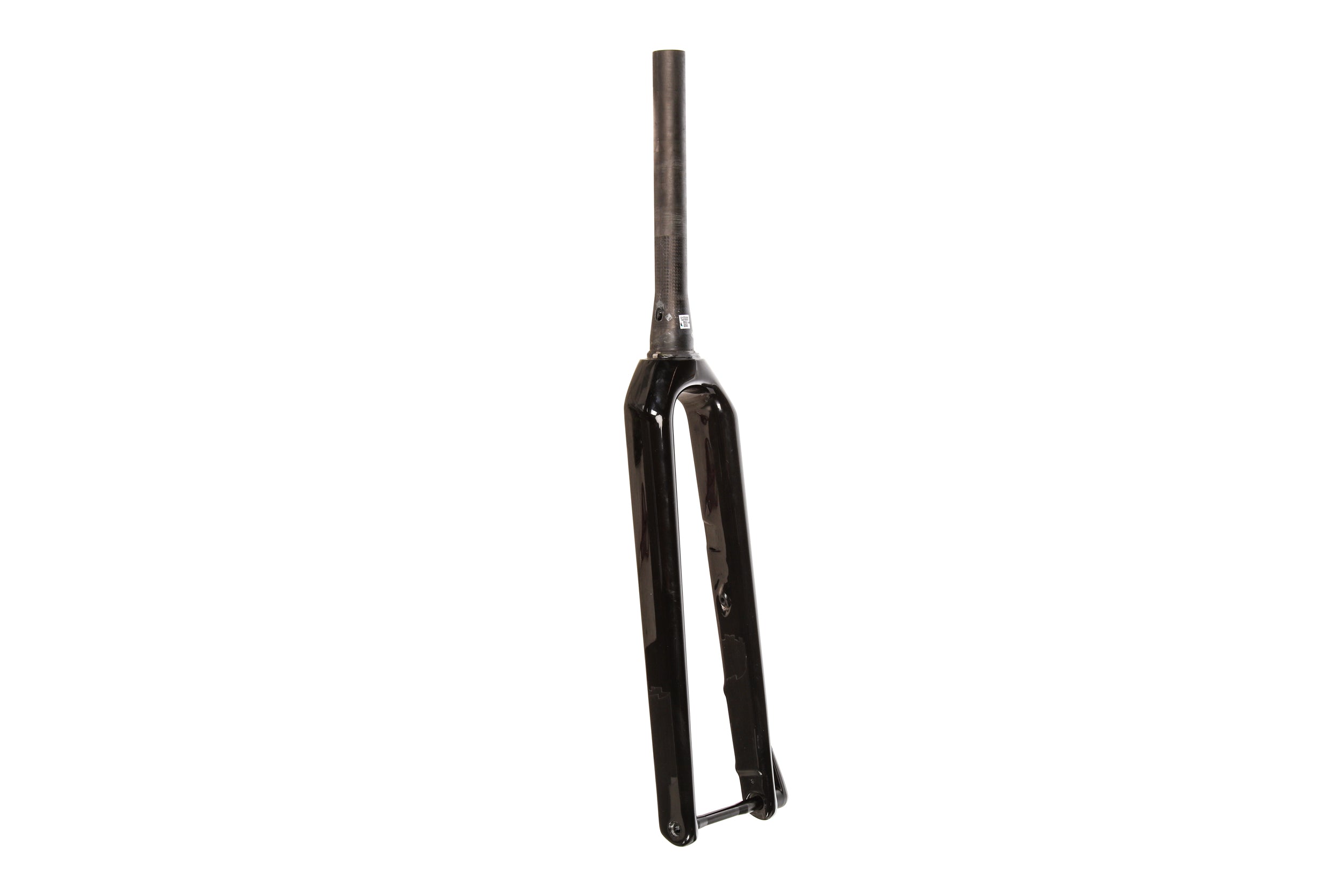

| Fork | Canyon FK0117 CF Disc |
| Fork Material | Carbon |
| Steerer Tube | 265mm, Tapered |
| Brake Type | Disc Flat-Mount |
| Headset | Canyon |
| Bottom Bracket | Included, BB86 |
| Wheel Size | 700C |
| Seatpost Diameter | Frame Specific |
| Seatpost Clamp | Yes |
| Front Axle Spacing | 12x100mm (Thru-Axle) |
| Rear Axle Spacing | 12x142mm (Thru-Axle) |
| Weight | 4 lbs 9 oz |
| Drivetrain Compatibility | Mechanical/Electronic |
Geometry
| Fit Range |
6'.83" - 6'3.98"
|
| A. Effective Top Tube | 609 mm |
| B. Seat Tube | 540 mm |
| C. Seat Tube Angle | 73.5° |
| D. Head Tube Angle | 71.5° |
| E. Head Tube | 187 mm |
| F. Stack | 613 mm |
| G. Reach | 427 mm |
| H. Standover Height | 838 mm |
| I. Saddle Height Range | N/A |
